Geotextile fabric is often made from polypropylene or polyester fibers processed by woven, needle-punched or heat-bonded methods. short fiber needle punched geotextile fabric is made from 100% virgin staple polypropylene fibers that are tangled and interlocked with each other by needle-punching process.  It is the kind of non woven geotextile fabric which is robust, durable, permeable and resist to deformation. BPM short fiber nonwoven geotextile fabric is widely used to increase ground support and soil stabilization in a given location, it has the characteristics of high tensile strength, high elongation rate, excellent UV stabilization, excellent filtration and good abrasion resistance, etc. It is widely used for filtration, separation, protection, drainage applications in civil environmental engineering and construction projects.

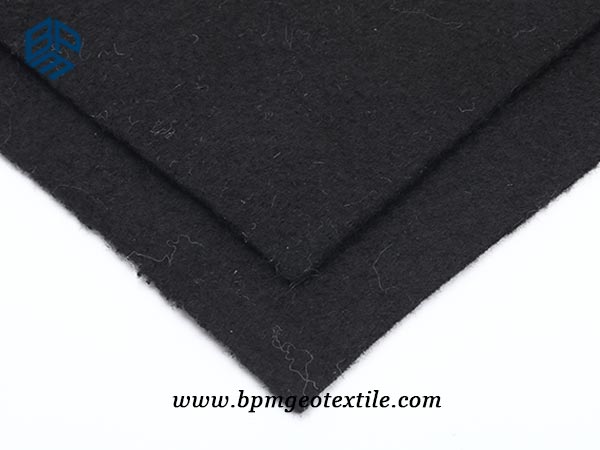

Short Staple Needled Punched Geotextile

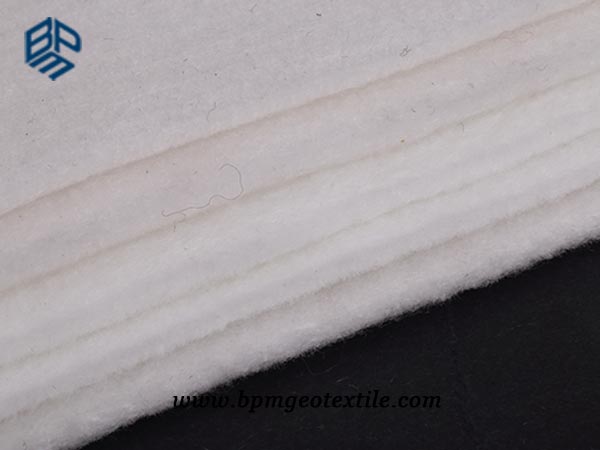

Short Staple Needled Punched NonWoven Geotextile Fabric

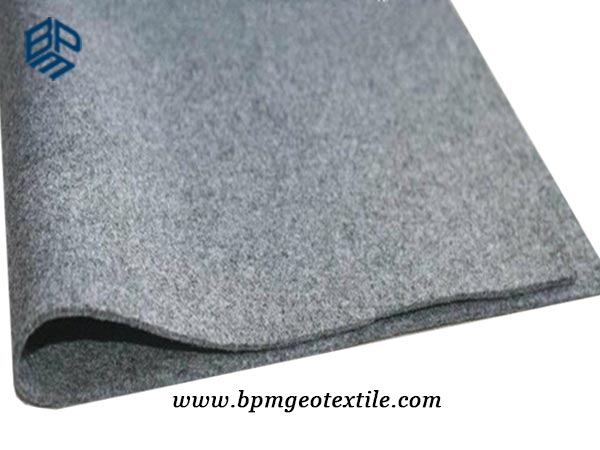

Short Fiber Needled Punched Geotextile

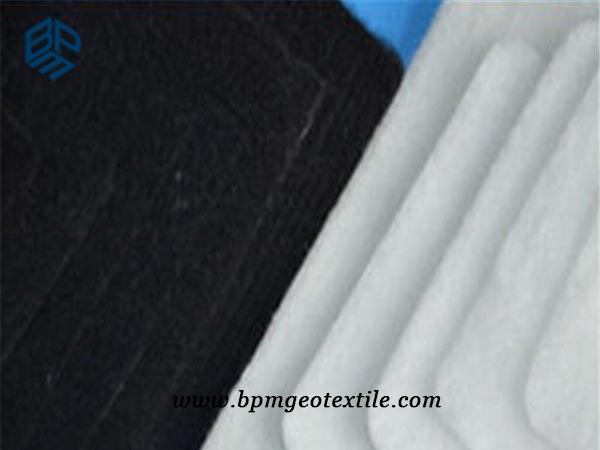

Short Fiber Needled Punched Non Woven Geotextile Fabric

Specifications of Short Fiber Needled Punched Geotextile Fabric

Item Unit BPM10 BPM15 BPM20 BPM25 BPM30 BPM35 BPM40 BPM45 BPM50 BPM60 BPM80
Mechanical Properties (MD=Machine Direction Strength/CD=Cross Machine Direction Strength)
Weight g/m2 100  150  200  250  300  350  400 450 500 600 800
 Weight Variation  %  -8  -8  -8  -8  -7  -7  -7  -7  -6  -6  -6
 Thickness  mm  0.9  1.3  1.7  2.1  2.4  2.7  3  3.3  3.6  4.1  5
 Width Variation % -0.5
 Break Strength
(MD and XMD)  kN/m 2.5  4.5  6.5  8  9.5  11  12.5  14  16  19  25
 Break Elongation  %   25-200
 CBR Burst Strength≥  kN 0.3  0.6  0.9  1.2  1.5  1.8  2.1  2.4  2.7  3.2 4
Hydraulic
Properties
 Sieve Size O90  mm  0.07-0.02
 Permeability Coefficient  cm/s  (1.0-9.9)× (10-1 ~ 10-3)

Short Fiber Needled Punched Geotextile Fabric Features

  • High tensile strength
  • Excellent water permeability and drainage
  • Good filtration effect
  • High corrosion resistance
  • Good separation, drainage, reinforcement, protection function
  • High flexibility
  • Resistant to acids and alkalis
  • Anti-oxidation
  • Best creep resistance
  • Easy construction

Short Fiber Needled Punched Geotextile Fabric Applications

  • Improve the slope stability and soil reinforcement.
  • Retaining and reinforcement wall backfill.
  • Strengthen weak road and fix the cracks on the road.
  • Isolation layer of artificial backfill soil stone foundation and different tundra.
  • Filtration layer of drainage pipe or gravel.
  • Vertical or horizontal drainage;
  • Bury in soil to release air pressure.
  • Reinforce the weak foundation of road, railway, embankment and airport, etc.

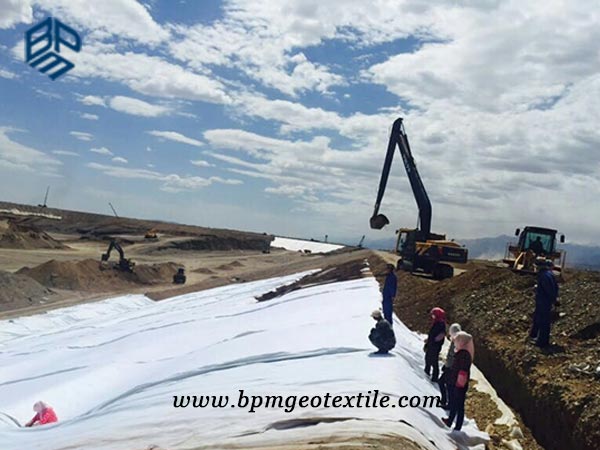

Short Staple Needled Punched Geotextile for Road Construction

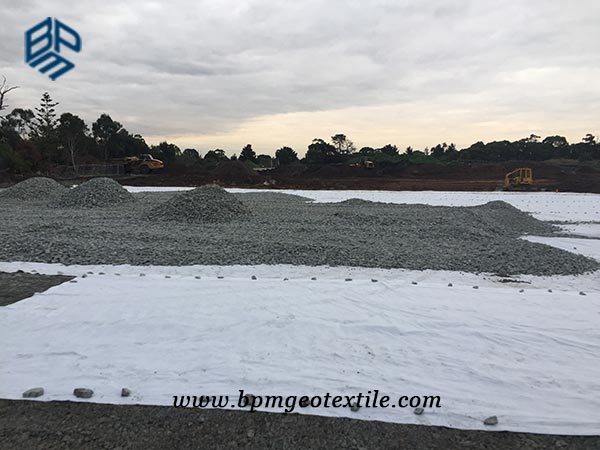

Short Staple Needled Punched Geotextile Fabric for Road Construction

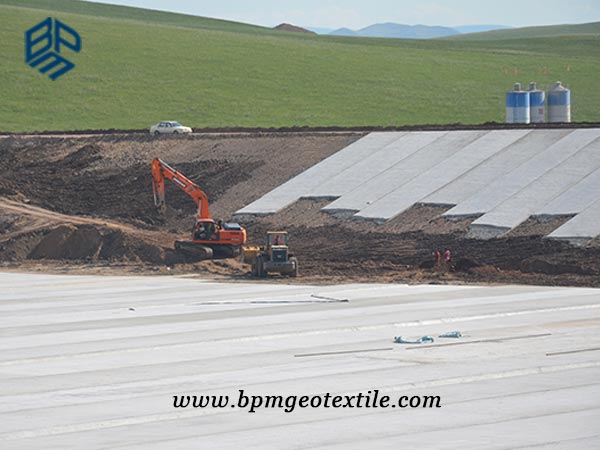

Needled Punched Geotextile for Embank Reinforcement

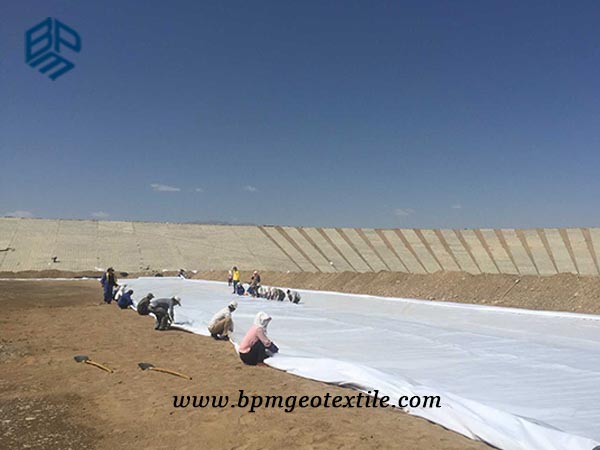

Short Staple Needled Punched Geotextile for Civil Engineering
