Pet woven geotextile fabric is made of pre-stressed multi-filament polyester or polypropylene yarns entwined in the longitudinal direction of polyester and in a transverse direction with each other  by woven method and entangled into stable fabric pattern by special warp straight matting process. BPM pet woven geotextile have characteristics of high tensile strength, excellent excellent resistant to UV, chemical substances and micro organisms. The pet woven geotextile is widely used for reinforce and stabilize the structure of steep slope, soft sub-grade foundation and embankment, retaining soil cover, landfills, etc.

Pet Woven Geotextile Filter Fabric

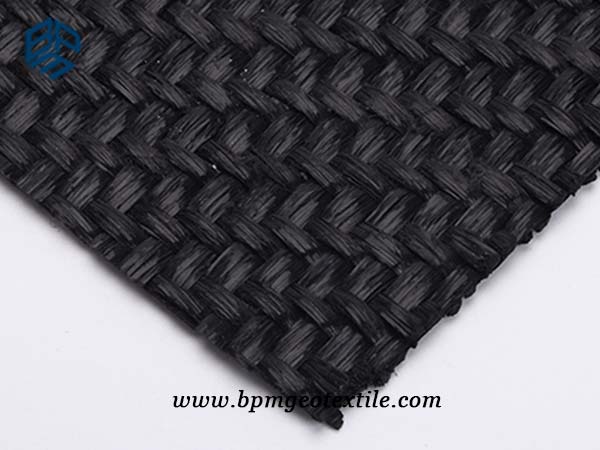

Pet Woven Geotextile
Pet Woven Geotextile Fabric

Pet Woven Geotextile Specifications

Property Unit BETW100-50 BETW300-50 BETW500-50 BETW600-50 BETW1200-50
Ultimate Tensile Strength MD KN/m 100  300  500  600  1200
Ultimate Tensile Strength CD KN/m 50 50 50 50 50
Strain at short term strength % 10 12  12  12 12
Elongation % 30 30 30 30 30
Apparent Opening Size  mm 0.15 0.15 0.15 0.15 0.15
UV resistance ( Retained 500 Hours) % 70 70 70 70 70
Width m 5.2 5.2 5.2 5.2 5.2
Height m 100 100 100 100 75
Roll weight Kg 140 320 480 580 810

Pet Woven Geotextile Features

  • High tensile strength
  • Resistant to UV
  • Low elongation, low creep
  • High creep resistance
  • Resistant to chemical substances
  • Resistant to micro-Organisms
  • Less differential settlement
  • Cost effective
  • Ease of installation

Pet Woven Geotextile Fabric Applications

  • Embankment reinforcement
  • Steep Slope Construction
  • Retaining soil cover over soft soil
  • Coastal and side slope production
  • Sub-grade soft foundation treatment
  • Railway, road, tunnel, coastal mud flat construction
  • Reclamation and environmental project

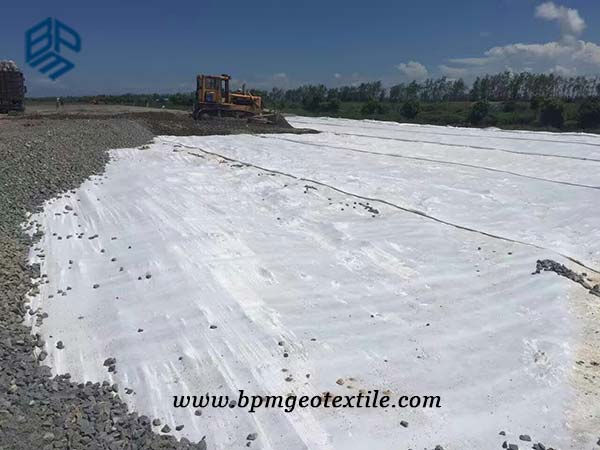

Pet Woven Geotextile Fabric Application

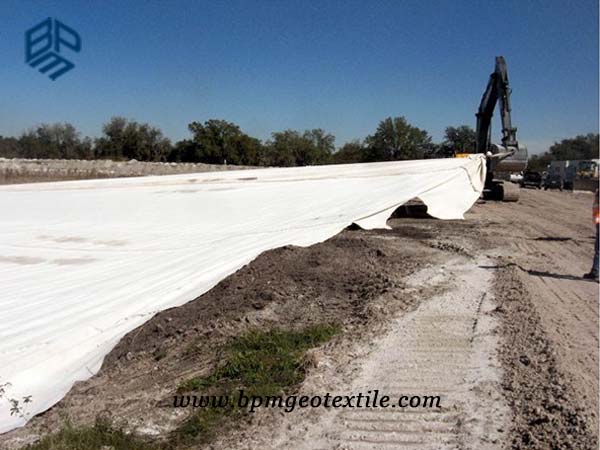

Pet Woven Geotextile Fabric for Road Construction
