More and more geotextile fabrics are very popular in recent years, they can be used to increase ground support and soil stabilization in a given location,for example:Gravel Driveway. BPM Geotextile has the characteristics of high tensile strength, high elongation rate, excellent UV stabilization, excellent filtration and good abrasion resistance, etc. It is widely used for filtration, separation, protection, drainage applications in civil environmental engineering and construction projects.Nowadays, many clients do not know how to choose right 6 Oz Geotextile Fabric.This article will briefly discuss how to choose right 6 Oz Geotextile Fabric for gravel driveway.

1. Brief Introduction to 6 Oz Geotextile Fabric

1.1 Definition of 6 Oz Geotextile Fabric

Geotextile Fabric is often made from polypropylene or polyester fibers processed by woven, needle-punched or heat-bonded methods. Short fiber needle punched geotextile fabric is made from 100% virgin staple polypropylene fibers that are tangled and interlocked with each other by needle-punching process.  It is the kind of non woven geotextile fabric which is robust, durable, permeable and resist to deformation.

1.2 Geotextile Fabric types and its brief applications

There are different types of Geotextile Fabric available in China, each designed for specific applications. Here are some common types and their brief applications.

1.2.1 StapleFiber Needle Punched Geotextile Fabric

BPM Staple Fiber Needle Punched Geotextile is produced from polyester or polypropylene Fiber by different equipment and technology to get different thickness.The main function is filtration, drainage, reinforcement. lt has good impermeability and resistance to deformation.

BPM Staple Fiber Needle Punched Geotextile are widely used in various applications, including:

  • Reinforcement in retaining wall backfill.
  • Strengthen the weak road and fix the cracks on the road.
  • Improve the stability of slope and reinforcement soil, avoid water and soil loss and soil frozen injure.
  • Isolation layer of artificial backfill soil stone with foundation and different tundra.
  • Filtration layer of drainage pipe or gravel sub-drain. F. Vertical or horizontal drainage; Bury in soil to release air pressure.
  • Reinforce the weak foundation of engineering of road, railway, embankment, airport.

Specifications of Staple Fiber Needled Punched Geotextile Fabric

Test Units BTS10 BTS15 BTS20 BTS25 BTS30 BTS35 BTS40 BTS45 BTS50 BTS60 BTS80 BTS90 BTS120
Mechanical Properties Weight   g/m2 100 150 200 250 300 350 400 450 500 600 800 900 1200
Weight Variation % -8 -8 -8 -8 -7 -7 -7 -7 -6 -6 -6 -6 -6
Thickness   mm 0.9 1.3 1.7 2.1 2.4 2.7 3 3.3 3.6 4.1 5 5.5 6.9
Width Variation % -0.5
Break Strength
(MD and XMD)		 kN/m 2.5 4.5 6.5 8 9.5 11 12.5 14 16 19 25 29 38
Break Elongation % 25 ~ 100
CBR Burst Strength   ≥ kN 0.3 0.6 0.9 1.2 1.5 1.8 2.1 2.4 2.7 3.2 4 4.5 6.2
Tear Strength  ≥
(MD and XMD)		 kN 0.08 0.12 0.16 0.2 0.24 0.28 0.33 0.38 0.42 0.46 0.6 0.64 0.82
              MD=Machine Direction Strength       CD=Cross Machine Direction Strength
Hydraulic
Properties		 Sieve Size O90  mm 0.07 ~ 0.20
Coefficient of
Permeability 		cm/s (1.0-9.9)× (10-1 ~ 10-3)

 1.2.2 Filament Needled Punched Geotextile Fabric

Filament Needled Punched Geotextile Fabric is made from virgin continuous polyester filament by needle punching and thermally bonding process to form strong fabric that retains its dimensional stability and is resistant to damage from construction stresses.Polyester filament non woven geotextile is widely used for separation, filtration, drainage, protection and reinforcement functions in civil environmental engineering and construction projects.

  • Separation

To separate building materials with different physical properties such as soil and sand, sand and gravel, soil and concrete, etc. Keep the two or more materials from losing or mixing, and maintain the overall structure and function of the material, such as the effective isolation between the roadbed and the foundation, the foundation and the embankment, the geomembrane and the sand draining layer.

  • Soft foundation reinforcement.

To enhance the tensile strength and anti deformation ability of soil can enhance the stability of building structures such as trash impurities, base soil or stone layer, airport railway, playground, runway, landfill and so on, so as to improve the quality of soil.

  • Filter

When the water flows into the coarse soil layer from the fine soil layer, the geotextile can make the water flow through the good permeability and permeability of geotextiles, and effectively interception the soil particles, fine sand and small stones, so as to keep the stability of the soil and water engineering.

  • Drainage

Installed in the geomembrane, the playground or the railway track bed.

  • Protection

Effectively diffuse, transfer or decompose the stress of civil engineering so as to prevent soil from being damaged by external force.

Specifications of Filament Needled Punched Geotextile Fabric

Specifications Test Method Unit BTF100 BTF150 BTF200 BTF250 BTF300 BTF350 BTF400 BTF450 BTF500 BTF600
Index Properties
Ultimate Tensile Strength, MD ASTM D4595 kN/m 7 11 14 17 19 24 27 30 37 41
Ultimate Tensile Strength, TD ASTM D4595 kN/m 6 10 12 15 17 21 25 28 34 38
Tensile Elongation ASTM D4595 % 45 45 50 50 50 60 60 60 60 60
Grab Tensile Strength, MD ASTM D4632 N 400 600 850 1000 1250 1450 1700 1900 2100 2500
Grab Tensile Strength, TD ASTM D4632 N 350 550 700 900 1100 1250 1450 1600 1800 2150
Grab Elongation ASTM D4632 % 45 45 50 50 50 60 60 60 60 60
Trapezoid Tear Strength, MD ASTM D4533 N 160 300 350 430 490 540 630 710 770 920
Trapezoid Tear Strength, TD ASTM D4533 N 140 270 330 400 450 510 610 690 750 900
CBR Puncture Strength ASTM D6241 N 1000 1800 2300 2700 3200 3600 4400 4800 5800 6900
Apparent Opening Size O90 ASTM D4751 mm 0.12 0.11 0.11 0.10 0.09 0.09 0.08 0.08 0.08 0.08
Water Flow Q100 ASTM D4491 L/m2/s 250 235 220 200 185 165 125 110 90 80
Weight ASTM D5261 g/m2 100 150 200 250 300 350 400 450 500 600
Thickness ASTM D5199 mm 1.2 1.8 2.3 2.9 3.2 3.6 3.9 4.2 4.4 4.8
Roll Width – m 6 6 6 6 6 6 6 6 6 6
Roll Length – m 300 200 150 100 100 100 80 80 50 50

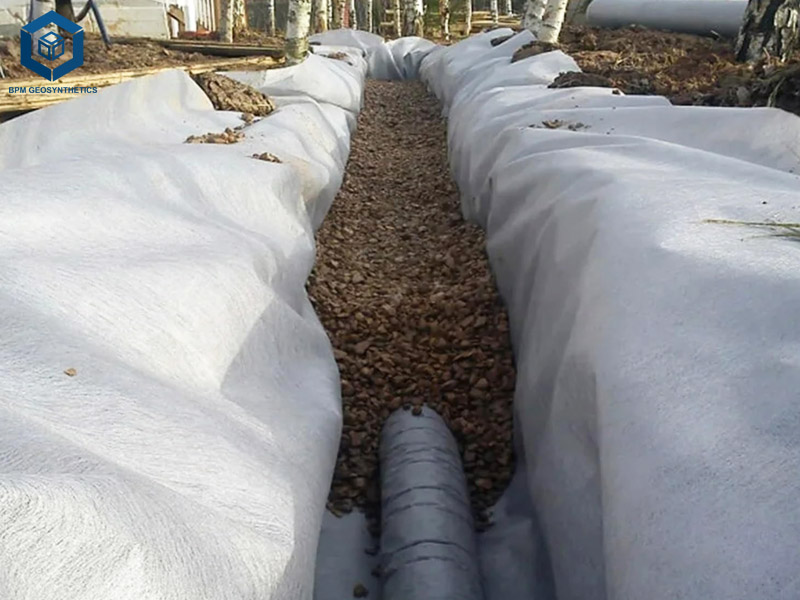

8 oz Needle Punch Filter Fabric for Drain

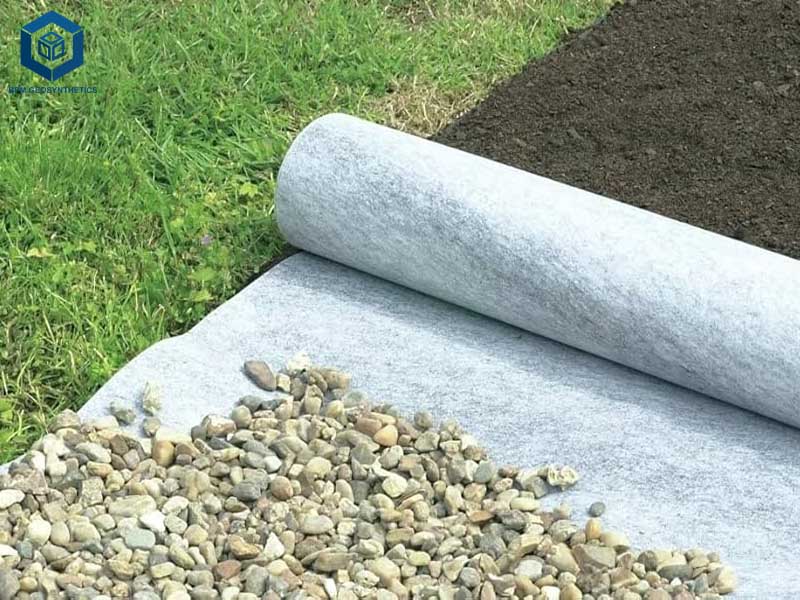

Non Woven Filter Fabric for Retaining Wall

2. How to Choose Right 6 Oz Geotextile Fabric

2.1 6 Oz Geotextile Fabric – Material Quality:

Ensure that the Needle Punched Geotextile Fabricl is made from high-quality materials. The Needle Punched Geotextile Fabric should meet industry standards and specifications for Needle Punched Geotextile Fabric.Look for manufacturers or suppliers with a good reputation for producing reliable and durable products.

2.2 6 Oz Geotextile Fabric – Width and Length:

Determine the required width and length of the liner roll based on the dimensions of your project site. Ensure that the supplier can provide the liner roll in the required dimensions to minimize waste and installation effort.The BPM factory can produce the width are 1m, 2m, 4m, 6m.

2.3 6 Oz Geotextile Fabric – Certification and Testing:

Check if the Needle Punched Geotextile Fabric has undergone testing and certification by reputable organizations or laboratories. Look for certifications such as ISO 9001:2015, ISO 14001:2015,  to ensure that the Needle Punched Geotextile Fabric meets quality and performance standards.

2.4 6 Oz Geotextile Fabric – Chemical Resistance:

Assess the chemical resistance properties of the 6 Oz Geotextile Fabric. It should be resistant to a wide range of chemicals typically found in the specific application environment. Request chemical compatibility data from the supplier and verify that it meets your project requirements.BPM company has its own GAILAP laboratory and a complete laboratory testing system

2.5 6 Oz Geotextile Fabric – Installation Support:

Inquire about the supplier’s installation support services. Some suppliers may offer technical assistance, training, or installation guidelines to ensure proper installation of the 6 Oz Geotextile Fabric. This can be beneficial, especially if you are not familiar with the installation process.

2.6 6 Oz Geotextile Fabric – Price and Delivery:

Compare prices from different suppliers while considering the quality and specifications of the 6 Oz Geotextile Fabric. Additionally, ensure that the supplier can deliver the liner roll within the required timeframe, especially if you have project deadlines.

3. Why Choose BPM Geotextile for Your 6 oz Geotextile Fabric Needs?

When it comes to selecting the right 6 oz geotextile fabric for your construction, landscaping, or erosion control project, quality, reliability, and performance matter. At BPM Geotextile, we pride ourselves on delivering premium geosynthetic solutions that stand the test of time. Here’s why choosing us is the best decision for your project:

3.1 Superior Quality & Durability

Our 6 Oz Geotextile Fabric is engineered for high tensile strength, excellent permeability, and superior puncture resistance. Made from 100% virgin polypropylene, it ensures long-term stability, even in harsh environmental conditions. Whether you need soil separation, drainage, or erosion control, BPM’s fabric delivers unmatched performance.

3.2 Industry-Leading Expertise

With years of experience in geosynthetics manufacturing, BPM Geotextile adheres to strict international standards (ASTM, ISO, and CE certified). Our technical team provides expert guidance to help you select the right fabric weight and specifications for your specific application.

3.3 Custom Solutions & Fast Delivery

Need a customized roll size or a specific strength grade? We offer tailored solutions to meet your project’s unique demands. Plus, our efficient logistics ensure fast delivery, keeping your project on schedule.

3.4 Competitive Pricing Without Compromise

We believe high-quality geotextiles should be affordable. By optimizing our manufacturing processes, we offer cost-effective pricing without sacrificing performance, giving you the best value for your investment.

3.5 Exceptional Pre-Sale & After-Sale Support

  • Pre-Sale Assistance: Our experts help you choose the right product, providing technical data and project-specific recommendations.

  • After-Sale Service: From installation guidance to troubleshooting, we’re committed to your satisfaction long after purchase.

3.6 Sustainable & Eco-Friendly

BPM’s geotextiles are designed for sustainability, reducing soil erosion and promoting efficient water management while minimizing environmental impact.

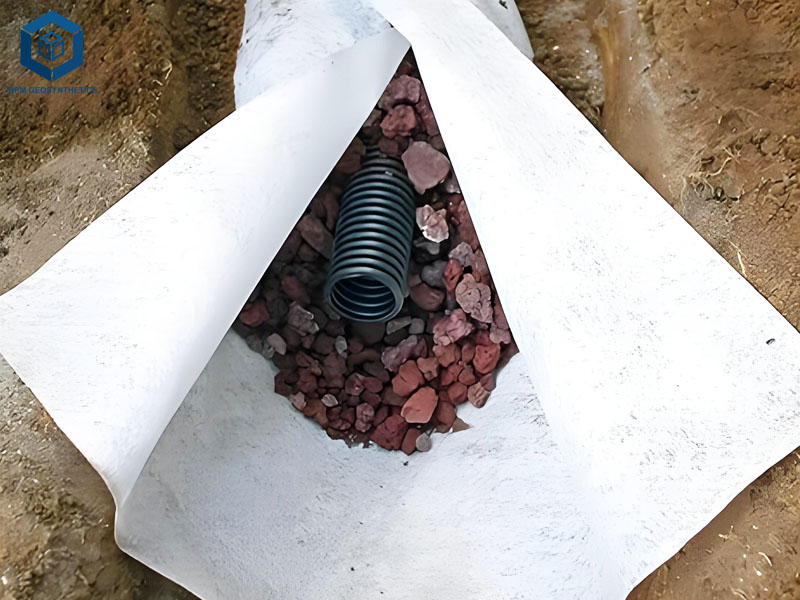

Geotextile Fabric for Seawalls
6 Oz Geotextile Fabric Polypropylene Non Woven Filter Fabric

4. Summary

Based on this article’s words, you could know How to right geotextile fabric for gravel driveway: The quality is basic and the service is the safeguard.

So when buying the right geotextile fabric, hope this article can help you well to do the right needle punched geotextile fabric for sale. If you have any related projects or right needle punched geotextile Fabric, do not hesitate to ask a price here. Thanks for reading.
